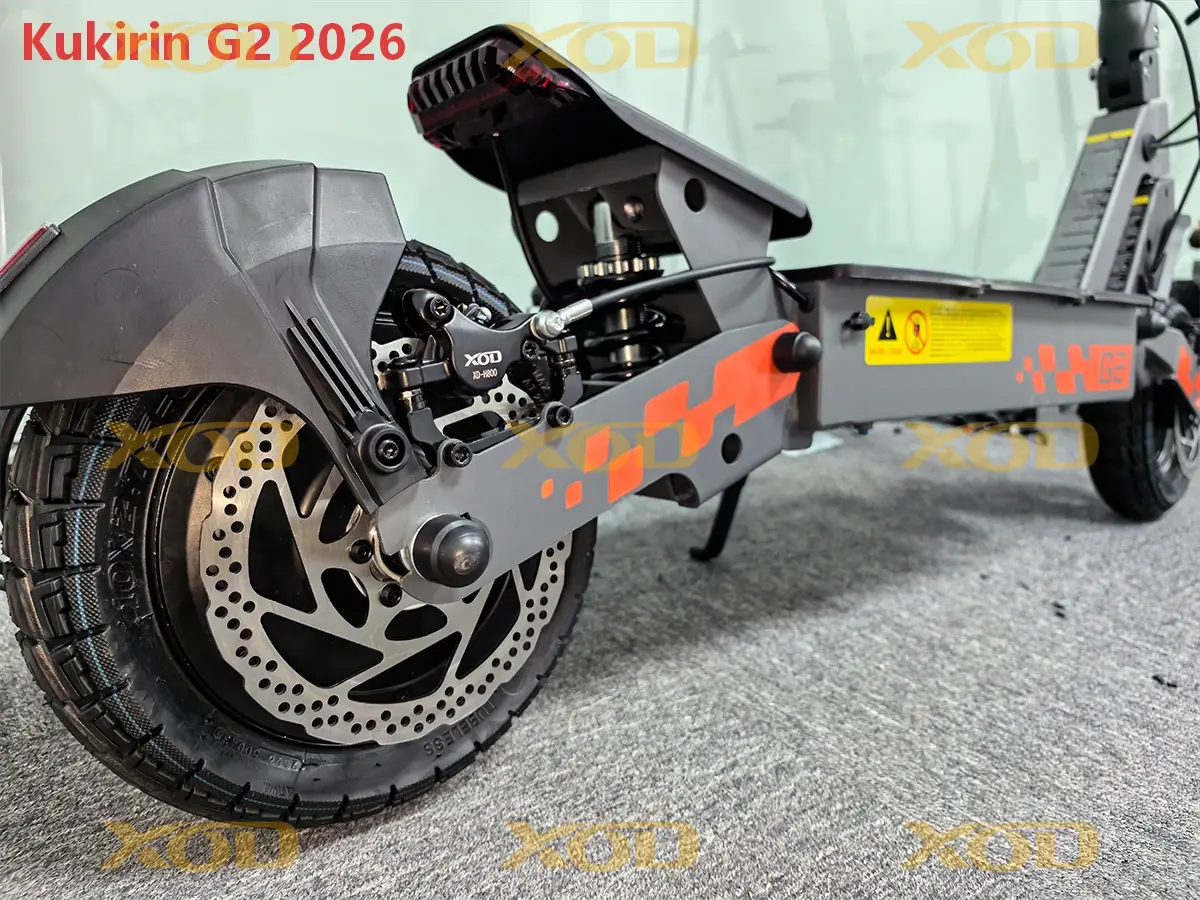

KuKirin G2
Front: H880 · Rear: H800
- Sensor adapter cables ×2
- 4mm rotor spacer ×1 for the front wheel
1
/
7
1
/
7
XOD Hydraulic Brake Upgrade Kit for KuKirin Scooters
$66.00
Quantity
XOD Hydraulic Brakes · KuKirin Fitment

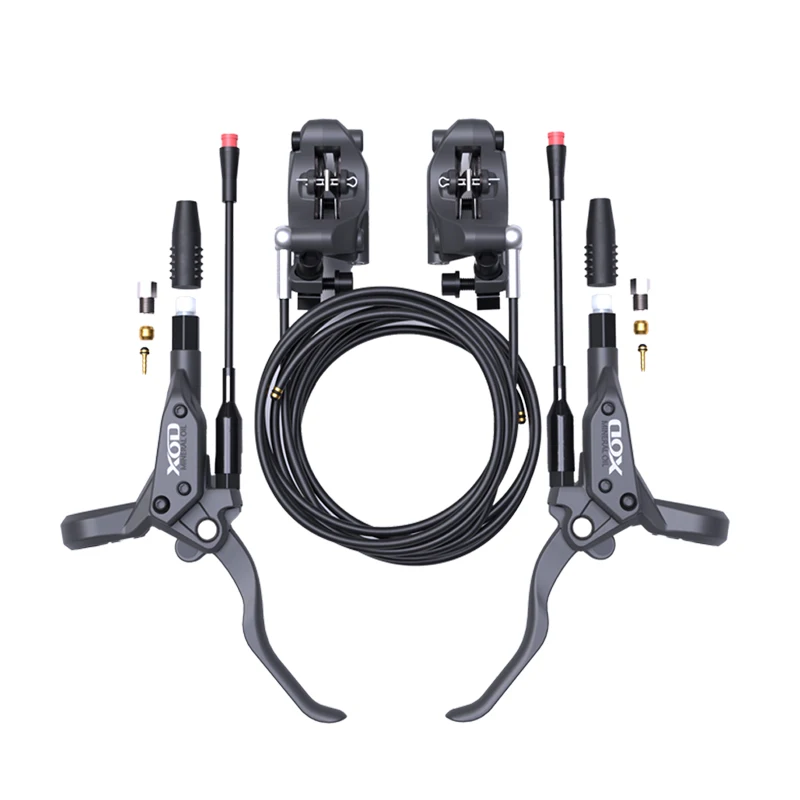

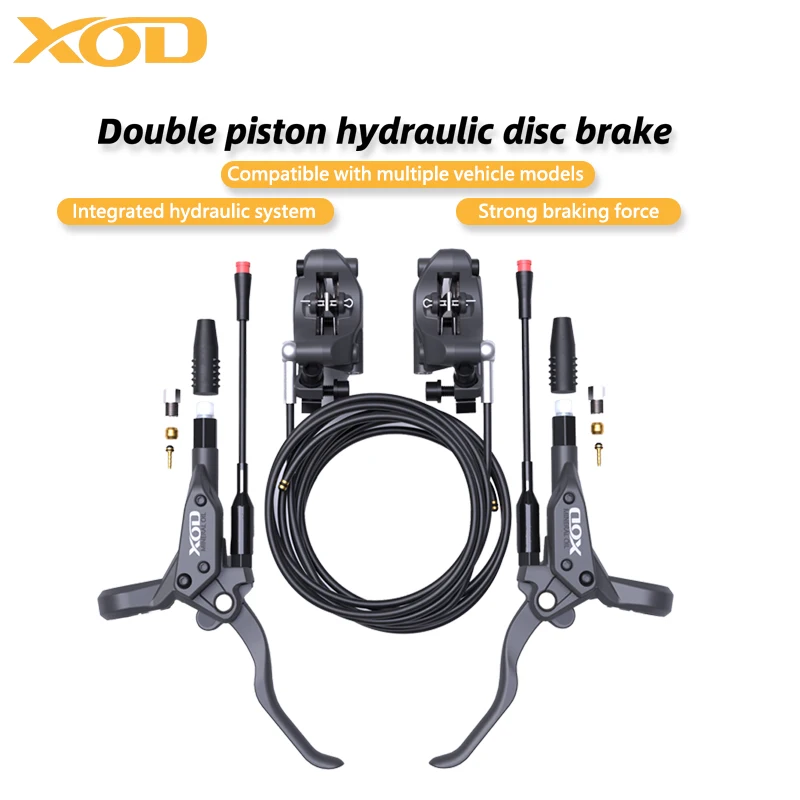

XOD Hydraulic Brake Upgrade for Compatible KuKirin Scooters
Upgrade your compatible KuKirin electric scooter with XOD H-Series hydraulic brakes. Before ordering, confirm your model, front and rear calipers, sensor connector and any required spacers or adapter cables.
Use the native product variant selector to choose the correct model and kit. The guide below helps verify compatibility and included parts.
Before checkout: not every scooter variant uses the same front and rear calipers or includes the same accessories. Check the exact model and version. If your scooter is not listed or its production version is uncertain, contact support before ordering.

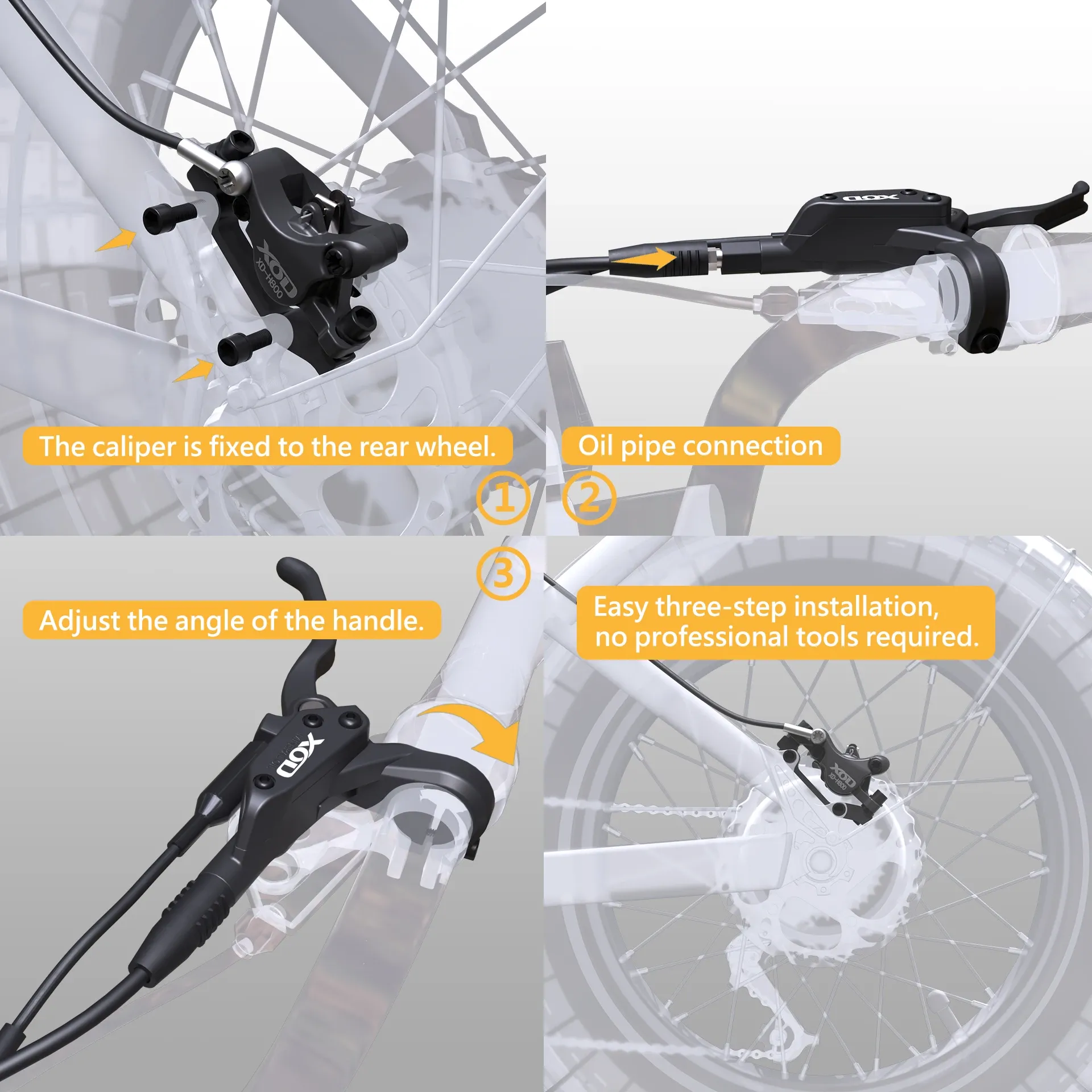

Installation Reference
Check Fitment Before Installing Your Brakes
Brake-disc clearance, caliper mounting position and sensor connectors can vary by scooter model. Follow model-specific instructions and retain original washers or mounting hardware whenever the relevant guide tells you to reuse them.

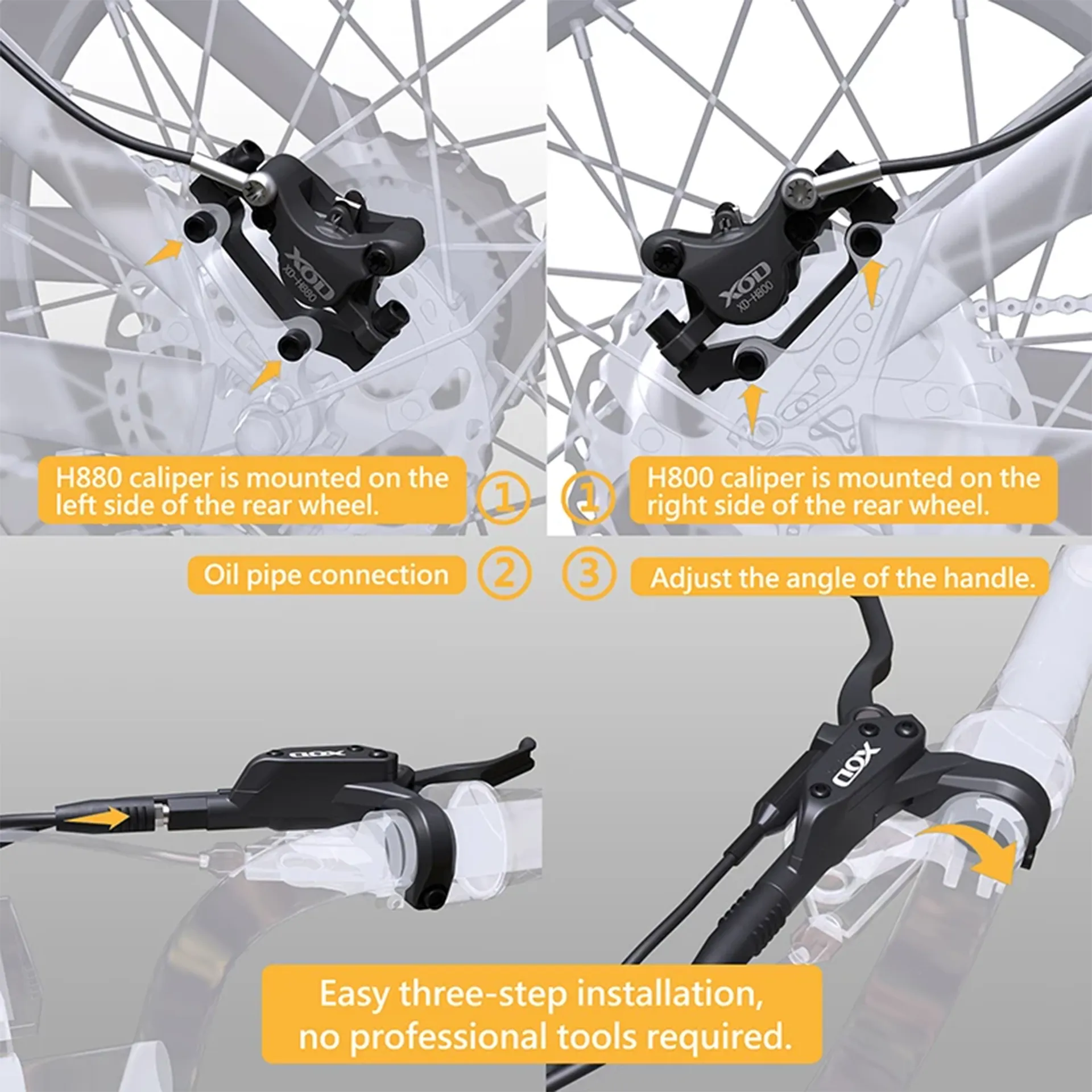

KuKirin Hydraulic Brake Compatibility and Kit Selection
Choose a kit using the model-specific configuration, not just the scooter family name. The six configurations below have confirmed caliper and accessory details. Other compatible KuKirin models may also support no-modification installation; confirm their exact configuration using current fitment guidance.

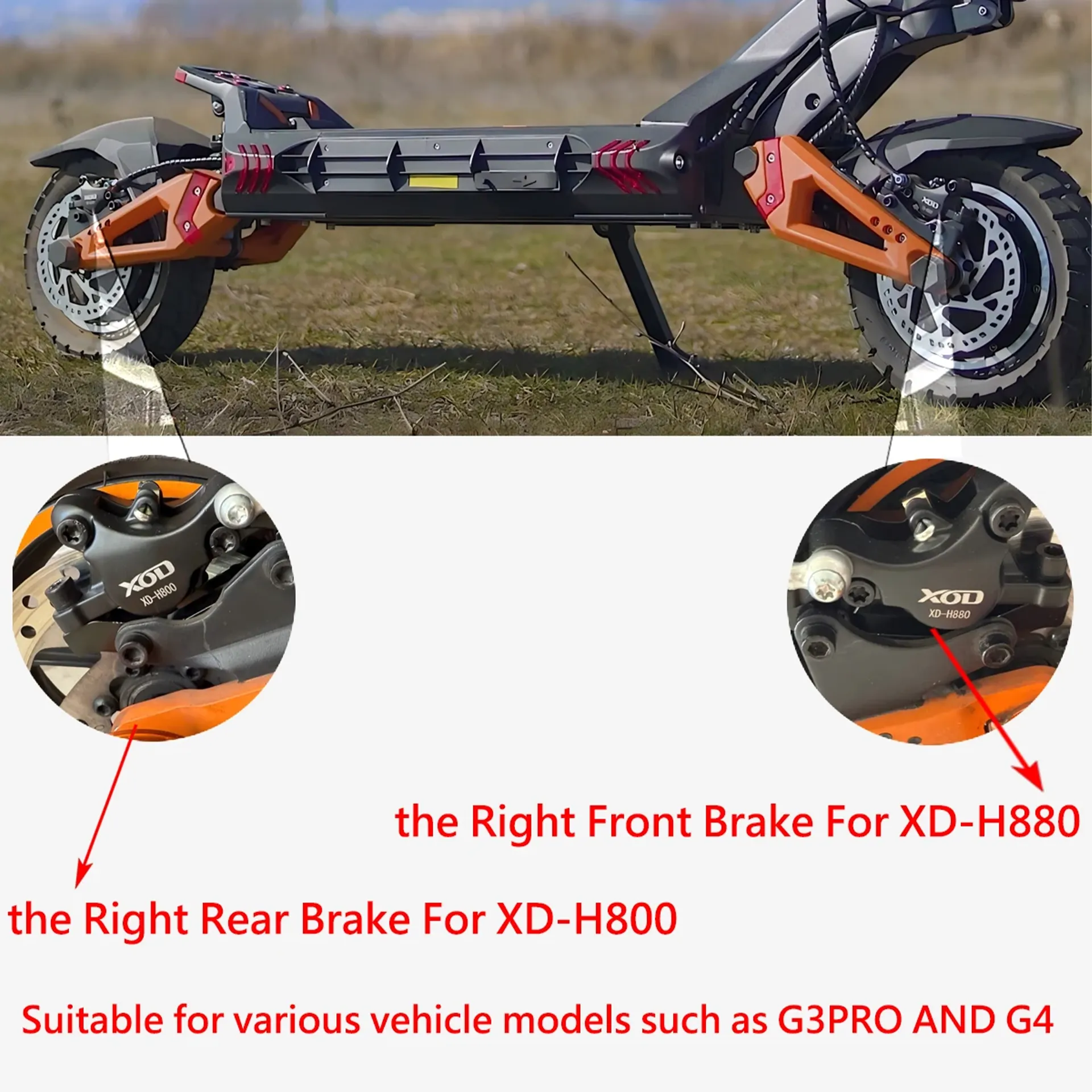

KuKirin G2 Ultra
Front: H880 · Rear: H800
- Sensor adapter cables ×2
- 4mm rotor spacer ×1 for the front wheel
KuKirin G4
Front: H880 · Rear: H800
- Sensor adapter cables ×2
- Retain original factory metal washers where the installation guide requires them.
KuKirin G4 Ultra
Front: H880 · Rear: H800
- Sensor adapter cables ×2
- Check original mounting hardware against the model-specific guide.
KuKirin G2 Pro · 2023 Version
Front: H800 · Rear: H880
- 5mm rotor spacers ×2
- One spacer for the front wheel and one for the rear wheel.
KuKirin G2 Pro · Latest Version
Front: H880 · Rear: H880
- 5mm rotor spacers ×2
- One spacer for the front wheel and one for the rear wheel.
KuKirin A1 sensor adapter: KuKirin A1 requires the same type of sensor adapter cable used for KuKirin G2. The A1 kit is not currently listed on the XOD store, but this does not itself mean the scooter is incompatible. Confirm the adapter is included or add it separately before checkout.

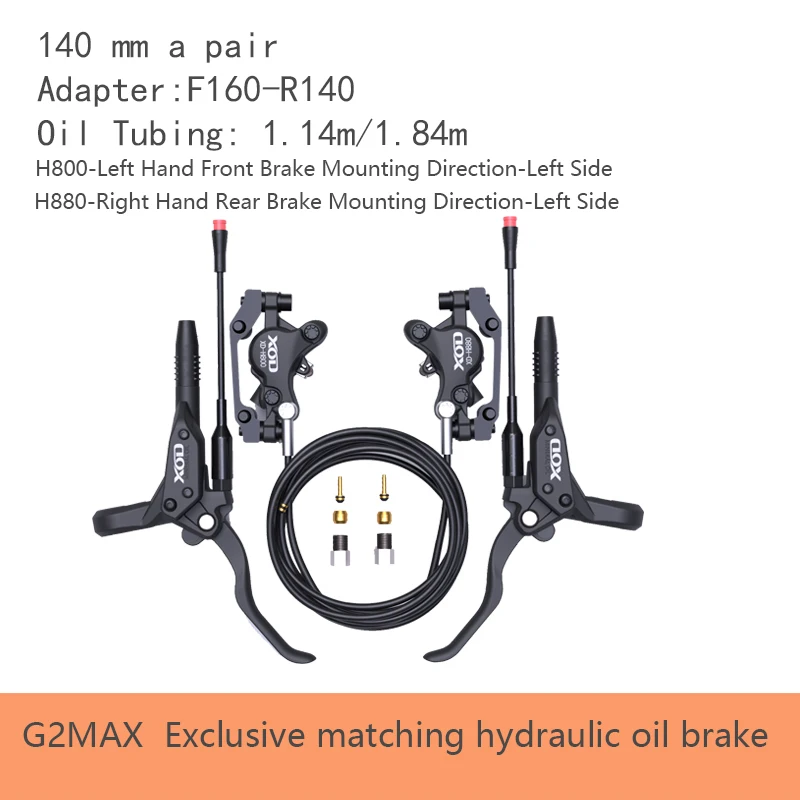

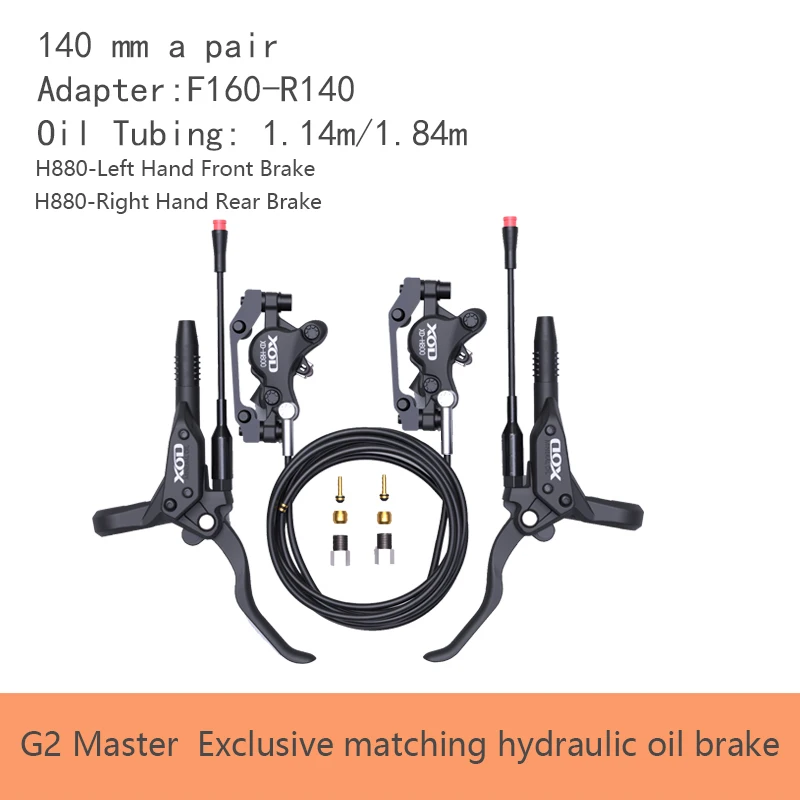

Other compatible models listed in the current product information include the KuKirin G2 Pro, G2 Max, G2 Master, G3, G3 Pro, G4 Max, M4 MAX, and more. The sources referenced on this page do not provide detailed specifications regarding the specific front and rear brake caliper configurations or related accessories for each of these models. Please do not assume that all models share the same configuration; before placing an order, ensure that you have selected the correct product specifications, or contact customer service for clarification.
For the broader XOD compatibility reference, see the XOD KuKirin hydraulic brake fitment guide.
Technical Specifications
| Specification | Details |
|---|---|

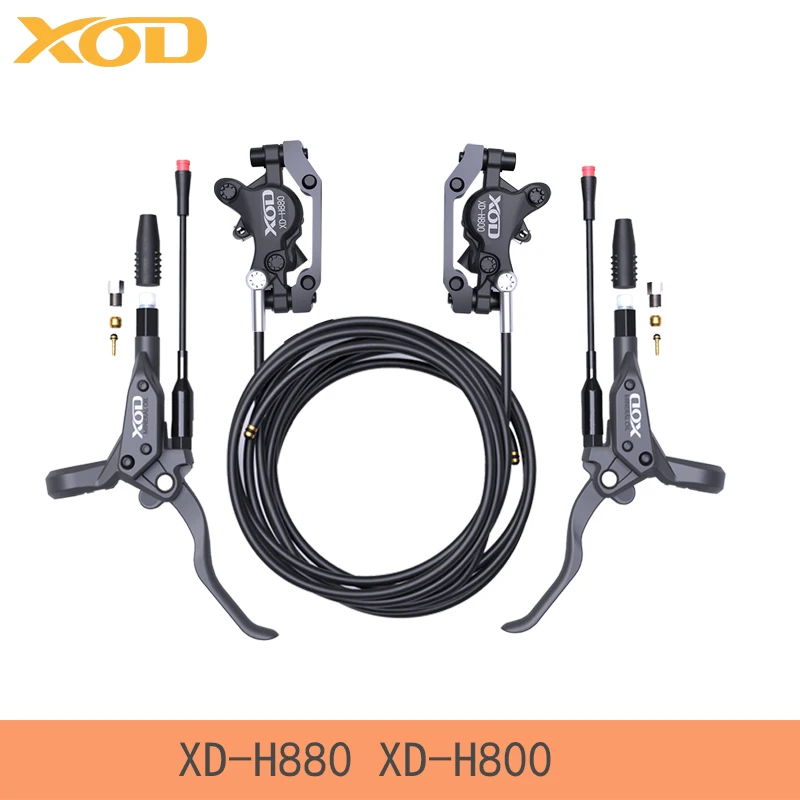

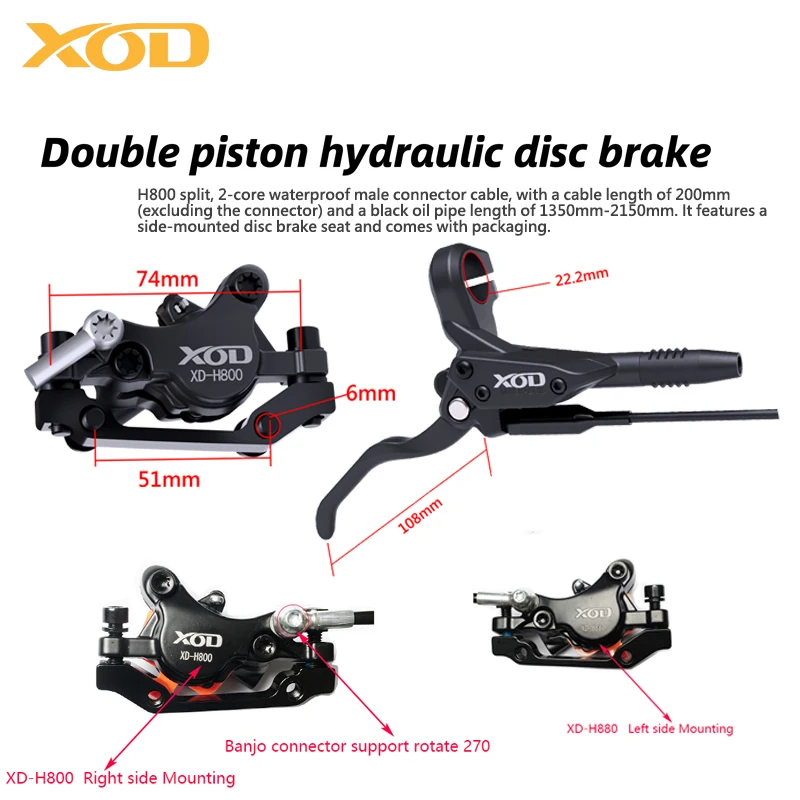

| Brake model | XOD waterproof hydraulic brakes, XD-H800 / XD-H880 according to selected configuration |
| Sensor connector | 2-pin waterproof connector; adapter requirements vary by scooter model |

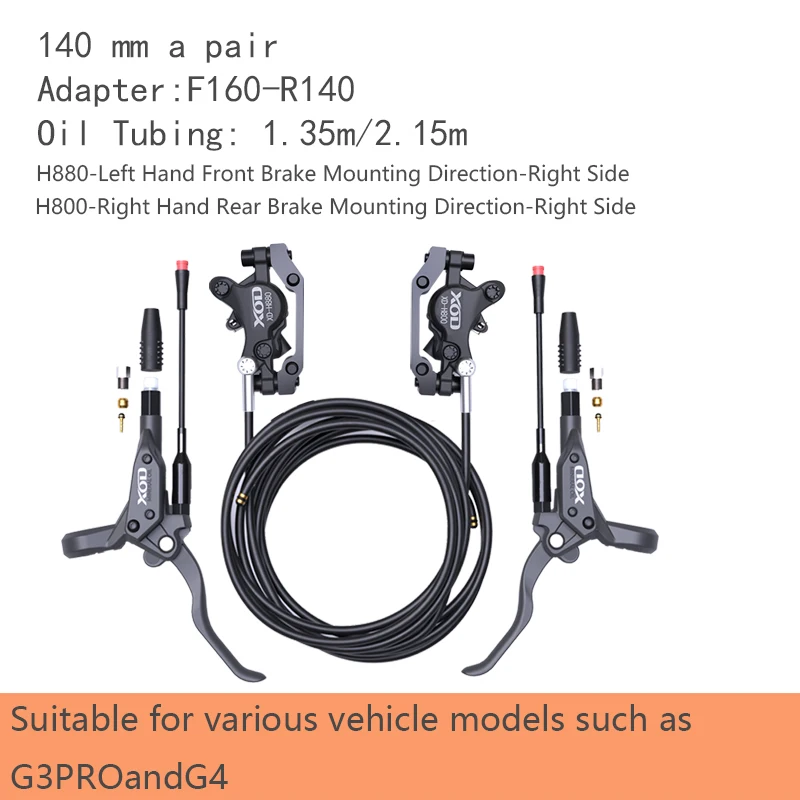

| Front hose length | Approximately 1350 mm |
| Rear hose length | Approximately 2150 mm |
| Weight | Approximately 1 kg per set |
Specifications are based on the product information supplied for this listing. Check the selected variant and package contents before purchase.

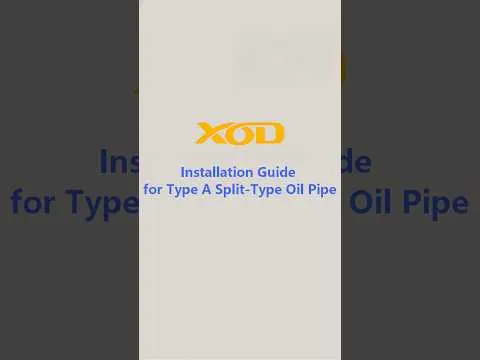

YouTube Installation Tutorial
Watch the installation short before fitting the brake kit. Hydraulic brake installation affects riding safety. If you are unfamiliar with brake bleeding, hose routing or caliper alignment, ask a qualified scooter mechanic for assistance.
Watch: XOD Hydraulic Brake Installation TutorialOpens the YouTube Shorts video in a new tab. Product Details
Frequently Asked Questions
How do I choose between the XOD H800 and H880?
The correct caliper depends on the scooter model, wheel position and mounting layout. Use the confirmed fitment information for your exact model and version instead of choosing based on the caliper name alone.
Does KuKirin A1 need a sensor adapter cable?
Yes. KuKirin A1 requires the same type of sensor adapter cable used for KuKirin G2. Confirm that the cable is included in your chosen order or add it separately before checkout.
Do all KuKirin models need rotor spacers?
No. Spacer requirements depend on the scooter model and version. The G2 and G2 Ultra special kits listed above include one 4mm front rotor spacer. Both G2 Pro versions listed above include two 5mm spacers, one for each wheel. Do not apply these requirements to other models without checking their fitment instructions.
Can I install the hydraulic brakes myself?
Installation requires correct caliper alignment, rotor clearance and sensor connection. If you are not experienced with hydraulic brake installation, ask a qualified scooter mechanic to install and inspect the system before riding.
What should I do if I cannot identify my scooter version?
Do not guess. Take clear photos of the front brake mount, rear brake mount, rotor area and sensor connector, then contact the seller for a compatibility check before ordering.
Installation Guides and Technical Support
- XOD KuKirin Hydraulic Brake Fitment Guide — review model-specific brake and accessory information.
- XOD Hydraulic Brake User Manual and Installation Guide — installation reference.
- XOD Hydraulic Brake FAQ — additional product and installation questions.
- XOD Brakes — explore XOD hydraulic brake systems and technical resources.
Check Your KuKirin Brake Fitment Before Checkout
Confirm the model, version, front and rear calipers, sensor adapter and rotor spacers included in your chosen kit. If your scooter configuration is not listed, contact the seller before ordering.
